CF Cellulose Fiber

This is the entry level into the PHD world. You´ll have all the typical features of the upper lines at a very competitive price. For many manufactures this would be the arrival point, for us this is the first step into the Hi-End world. This line uses a cellulose fiber cones to provide an high sensitivity and excellent performances also with low power.

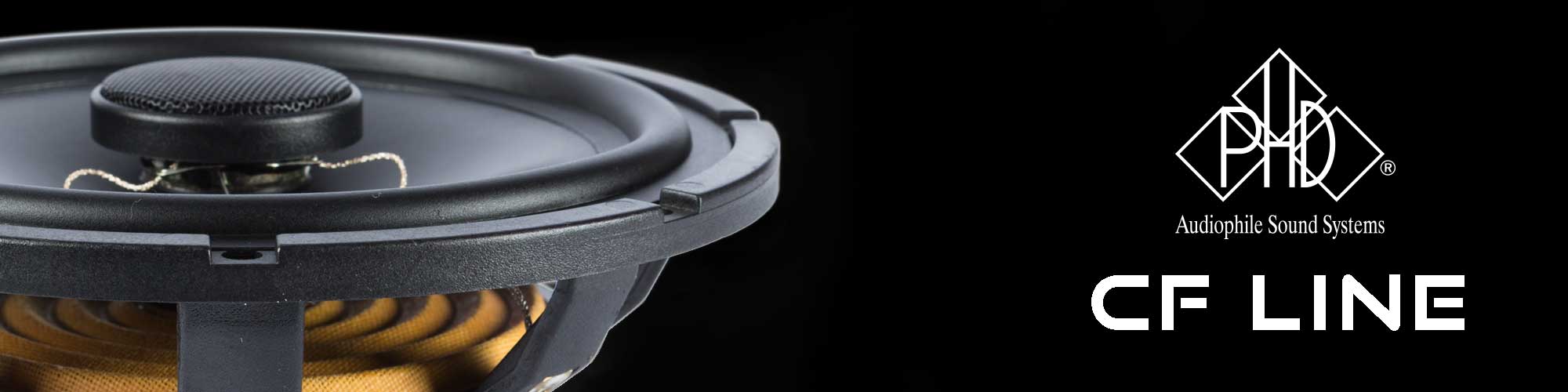

CF LINE

CF 4.1 Coax
Two Way Coaxial System
0.75" Dome Neodymium Tweeter
4" Cellulose Fiber Cone Mid/Bass Driver with High-Tight Fiber Basket
Power Handling RMS/MAX:
40/80 Watts
Sensitivity (SPL@1W):
89dB
Frequency Response:
65Hz - 20Khz
CF 5.1 Coax
Two Way Coaxial System
0.75"" Silk Dome Neodymium Tweeter
5.25" Cellulose Fiber Cone Mid/Bass Driver with High-Tight Fiber Basket
Power Handling RMS/MAX:
50/100 Watts
Sensitivity (SPL@1W):
89dB
Frequency Response:
60Hz - 20Khz
CF 6.1 Coax
Two Way Coaxial System
1" Silk Dome Neodymium Tweeter
6.5" Cellulose Fiber Cone Mid/Bass Driver with High-Tight Fiber Basket
Power Handling RMS/MAX:
60/120 Watts
Sensitivity (SPL@1W):
90dB
Frequency Response:
55Hz - 20Khz
CF 6.9 Coax
Two Way Coaxial System
1" Silk Dome Neodymium Tweeter
6”x9" Cellulose Fiber Cone Mid/Bass Driver with High-Tight Fiber Basket
Power Handling RMS/MAX:
70/140 Watts
Sensitivity (SPL@1W):
89dB
Frequency Response:
50Hz - 20Khz
Two Way Systems
CF 4.1 Kit
Two Way System with two 1.3 Tweeters, two crossovers and two 4.1 CF Mid/Basses
1" Silk Dome Neodymium Tweeter
4" Cellulose Fiber Cone Mid/Bass Driver with High-Tight Fiber Basket
12dB Two Way Passive Crossover
Power Handling RMS/MAX:
50/100 Watts
Sensitivity (SPL@1W):
89dB
Frequency Response:
65Hz - 20Khz
CF 5.1 Kit Two
Way System with two 1.3 Tweeters, two crossovers and two 5.1 CF Mid/Basses
1" Silk Dome Neodymium Tweeter
5.25" Cellulose Fiber Cone Mid/Bass Driver with High-Tight Fiber Basket
12dB Two Way Passive Crossover
Power Handling RMS/MAX:
50/100 Watts
Sensitivity (SPL@1W):
89dB
Frequency Response:
60Hz - 20Khz
CF 6.1 Kit
Two Way System with two 1.3 Tweeters, two crossovers and two 6.1 CF Mid/Basses
1" Silk Dome Neodymium Tweeter
6.5" Cellulose Fiber Cone Mid/Bass Driver with High-Tight Fiber Basket
12dB Two Way Passive Crossover
Power Handling RMS/MAX:
50/100 Watts
Sensitivity (SPL@1W):
90dB
Frequency Response:
55Hz - 20Khz
Three Way Systems
CF 6.3 Kit
Three Way System with two 1.3 Tweeters, two crossovers, two CF 3.1 Midranges and two 6.1 CF Mid/Basses
1" Silk Dome Neodymium Tweeter
3" Cellulose Fiber Cone Midrange Driver with High-Tight Fiber Basket
6.5" Cellulose Fiber Cone Mid/Bass Driver with High-Tight Fiber Basket
12dB Two Way Passive Crossover
Power Handling RMS/MAX:
50/100 Watts
Sensitivity (SPL@1W):
89dB
Frequency Response:
55Hz - 20Khz

Tweeters
1.3
1" Silk Dome Neodymium Tweeter
Power Handling RMS/MAX:
15/50 Watts
Sensitivity (SPL@1W):
91dB
Frequency Response:
2.5Khz - 20Khz
Midrange
CF 3.1 Midrange
Power Handling RMS/MAX:
30/80 Watts
Sensitivity (SPL@1W):
92dB
Frequency Response:
0.3Khz - 5.5Khz
Mid/Basses
CF 4.1 Mid/Bass
Power Handling RMS/MAX:
30/80 Watts
Sensitivity (SPL@1W):
91dB
Frequency Response From:
65hz
CF 5.1 Mid/Bass
Power Handling RMS/MAX:
30/80 Watts
Sensitivity (SPL@1W):
92dB
Frequency Response From: 60hz
CF 6.1 Mid/Bass
Power Handling RMS/MAX:
30/80 Watts
Sensitivity (SPL@1W):
92dB
Frequency Response From:
55hz
